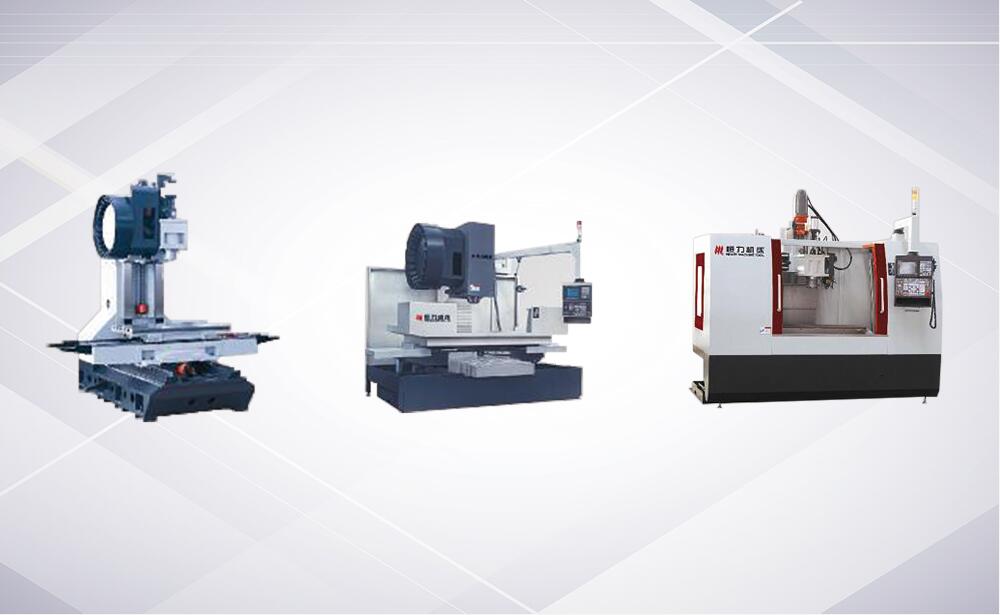

Vertical Machining Center

特別說明：產品圖片以及參數跟實際產品略有差異

定制說明：一切規格按照客戶實際情況或考察后量身定制，支持非標定制。

庫存配送：有貨，全國送貨保障！

溫馨提示：本產品一經下單生產，非質量問題不支持退貨！

產品介紹

Project	Unit	VMC550		VMC630		VMC800
Project	Unit	Ⅰ	Ⅱ	Ⅰ	Ⅱ
Bench
Working desk size	mm	550*1200	550*1500	630*1400	630*1600	800*2200
T-slot	mm	518100	518100	718100	718100	7181
Workbench maximum load	kg	1000	1200	1200	1500	2000
Travel
X-axis travel	mm	1200	800	1300	1100	1400
Y-axis travel	mm	550		650		850
Z-axis travel	mm	650		800		800
Spindle nose to table distance	mm	200-850(customizable）		200-1000(customizable）		200-1000（customizable）
Spindle
Spindle speed	rpm	6000		6000		6000
Spindle taper		BT50		BT50		BT50
Main motor power	Kw	15Kw		18.5Kw		22Kw
Spindle twist rejection	n.m	95		117		141
Feed system
X-axis rapid movement	m/min	32		32		32
Y-axis rapid movement	m/min	32		32		32
Z-axis rapid movement	m/min	32		32		32
Cutting feed rate	mm/min	1-12000		1-12000		1-12000
X, Y, Z transmission motor power	Kw	3/3/4		3/3/4		3/3/4
Track form		Three-axis rail		Three-axis rail		Three-axis rail
? ? ? ? ? ? ? Accuracy
Full positioning accuracy	mm	0.01	0.01	0.01	0.01	0.01
Repeatability	mm	0.005	0.005	0.005	0.005	0.005
Automatic tool change system
Tool magazine capacity		24	24	24	24	24
Tool diameter (full knife)	mm	φ110	φ110	φ110	φ110	φ110
Maximum tool diameter (lead empty knife)	mm	φ250	φ250	φ250	φ250	φ250
Maximum?Tool length	mm	300	300	300	300	300
Maximum Tool weight	kg	15	15	15	15	15
Tool change time (knife to knife)	sec	3	3	3	3	3
Air supply (use pressure)	kg/cm2	6	6	6	6	6
Machine weight	kg	9000	9000	10000	10000	12000
CNC system	FANUC system、SIEMENS system、Mitsubishi system

Configuration list	Z axis weight
Standard configuration	working lamp
Spindle speed 6000RPM	Warning Light
Spindle dust blowing system	Electrical box heat exchange system
Tool cooling system	M30 automatic disconnection system
Internal screw conveyor	FANUC
Collecting car	Optional configuration
Machine cleaning tank	Spindle speed 8000RPM
Air cleaning gun	Spindle Center Outlet System
Machine protection	Spindle oil cooler
Oil and water separation system	Infrared cutting knife detection system
Automatic tool exchange mechanism	Three-axis screw hollow cooling system
Knife arm magazine 24T	Three-axis grating
ZF gearbox
Fourth axis
